Tailor Made Cookware Test Machine , Custom Knives Test Tool

Name: Tailor Made Cookware Test Machine Custom Knives Test Tool
Brand: HAIDA
Price: 1 USD

China Tailor Made Cookware Test Machine , Custom Knives Test Tool wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-M003

Power : Electronic

Port : ShenZhen

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Product Name : Cookware Testing Machine

load : one is 20N and the other one is 10N(20N+10N=30N).

material : aluminium profile and stainless steel

Contact Now

Tailor Made Cookware Test Machine , Custom Knives Test Tool

Applications & Test Purpose:

The machine is used to test bending resistance of different knives.

Standard: ISO 8442, ISO8442-2

Standard parameters:

Test weights	10N±0.2N ( two)
Balance block	89mm×30mm×15mm (accuracy ±0.03mm)
Plastic parallel ruler	380mm×8mm
Scale plate	180mm×350mm
Acrylic cover	530mm×290mm×93mm
Out dimension	(L×W×H) 607mm×386mm×470mm
Fixtures	two clamps, one fixed handle, one moveable clamp

Test Procedure:

1. Clamp the handle of the sample to be tested in the pivoted clamp. Position the handle in the clamp so that during the test the tip of the blade or craving fork prongs and the end of the handle will remain in essentially the same horizontal plane.

2. Clamp the blade , or prong tip in the unloaded tip clamp, ensure that the hand lever is removed from the apparatus and set both scales to zero.

3. Connect the test load to the tip clamp put on the lever and rotate the shaft of the pivoted clamp until the tip clamp just rises from the guild rails maintain it in this position for 10 s. Return the hand lever to a position of rest and remove the hand lever, remove the load from the tip clamp and read off the angle of deflection. (angle of permanent deformation)

Turn the sample over and repeat the test in the opposite direction.

The Main Technical Parameter:

Model:	TT-C03 *Knives Test Tool*
1. The equipments consists 2 clamps, one permanent clamp for the handle and the other removable clamp for the tip of specimen.
2. Hand lever of the apparatus is removable and easy to attach on the apparatus.
3. 2 set of load included, one is 20N and the other one is 10N(20N+10N=30N).
4. The equipment is made of aluminium profile and stainless steel.
5. Acrylic protective cover provided for safety operation.

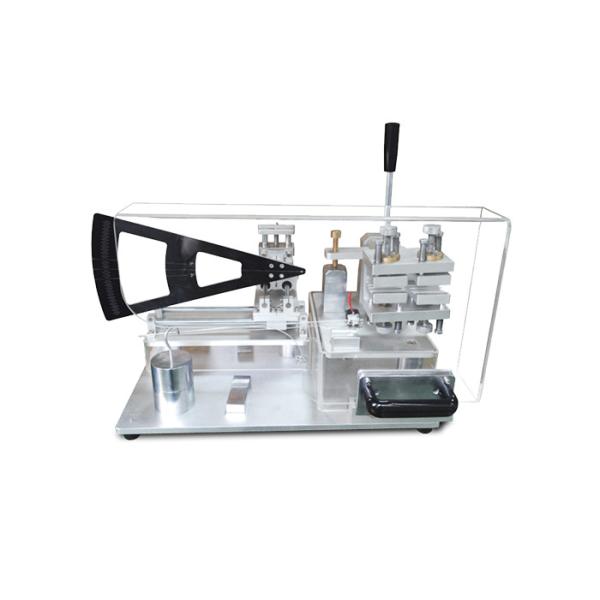

Knives Test Tool view:

Tailor Made Cookware Test Machine , Custom Knives Test Tool
