Automatic Paperboard And Paper Ring Crush Test/Testing Equipment

Name: Automatic Paperboard And Paper Ring Crush TestTesting Equipment
Brand: HAIDA
Price: 1 USD

China Automatic Paperboard And Paper Ring Crush Test/Testing Equipment wholesale

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-A513-2

Power : Electronic

Port : ShenZhen

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Product Name : paper testing machine

Display : touch screen operation

Capacity (Optional) : 10, 20, 50, 100, 200 kg

Resolution : 1/100,000

Dimensions(L×W×H) : 580mm×420mm×550mm

Contact Now

Automatic Paperboard And Paper Ring Crush Test/Testing Equipment

Specification:

1.Multi-fuction testing of paperboard,pasteboard
2.Can do RCT, FCT, ECT, PAT, CMT
3.Flat crush

The usage:
carboard ring crush tester can do a full range of tests, which include Ring Crush Testing, Flat Crush testing, Edge Compressive Testing, Adhensive Strength Testing and other general compression tests, to a variety of materials like paper, packaging materials, etc. It is a multi-functional testing equipment.

Optional Accessories:
ECT cutter
Pneumatic ECT cutter
RCT cutter
RCT disc accessories
FCT cutter
PAT accessories
CCT & CMT sample maker

The main technical parameters are as follows:

Item	Parameter
Capacity selection	200KG;
Induction	LOAD CELL force sensor;
Unit switching	"kgf", "N", "lbf", "gf", "KN";
Load resolution	1 / 100,000;
The highest resolution	0.1N;
Test speed	(10 ± 3) mm / min;
Pressure plate	diameter 118mm
Ring pressure sample	152mm × 12.7mm;
Edge pressure sample	100mm × 25mm;
Side pressure guide block	thickness 20mm, length 120mm;
Display mode	touch screen operation;
Language selection	Chinese and English exchange;
Platen parallelism	± 0.02mm;
Optional configuration	flat pressure sampler, side pressure sampler, ring pressure sampler, bonding fixture, side pressure fixture, ring pressure fixture;
Dimensions	(L × W × H) 580mm × 420mm × 550mm;
Weight	about 70kg;
Power supply	1∮, 220V, 50Hz, 2A

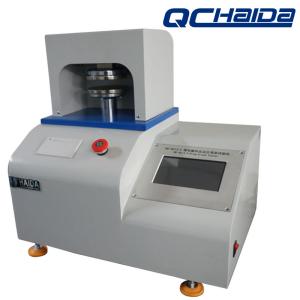

The picture of the machine:
Automatic Paperboard And Paper Ring Crush Test/Testing Equipment
