Place of Origin : Guangdong, China (Mainland)
Brand Name : HAIDA
Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC
Model Number : HD-A501S-1200
MOQ : 1 Set
Price : Negotiable
Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time : 20 days after order confirmed
Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability : 300 Sets per Month Haida
Product Name : Packaging Testing Equipment
Power : Electronic
Capacity : 2 T
Load Resolution : 1/100,000
Load Accuracy : ≤0.5%
Standard : TAPPI-T804; JIS-20212; GB4857.3.4; ASTM-D642
Microcomputer Box Compression Tester With Computer Servo Control

Specifications
 Paper Compression Strenth Testing Machines
 1. High quality
 2. 2 years warranty
 3. Up to TAPPI-T804,
 4. Reasonable price

 1. About the machine:
 Paper Compression Strenth Testing Machine is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

 2. Design criteria: TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4

 3. Specifications:
 Carton Compression Testing Instrument
| Model | HD-A501-600 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 1T |
| Load Resolution | 1/100,000 |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 600×800×800mm |
| Speed of Compression | 10 ± 3 mm/min |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display  |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
 4.Features
 1. Paper Compression Strenth Testing Machines is using a single-screen operation; do not need to switch the screen;
 2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
 3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
 4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
 5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
 6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
 7. With self-return & auto-correction function;
 8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
 9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
 11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.

 The certification
 ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SMC, CMC, CPA, CE,CMA,IMC

|
                                             |

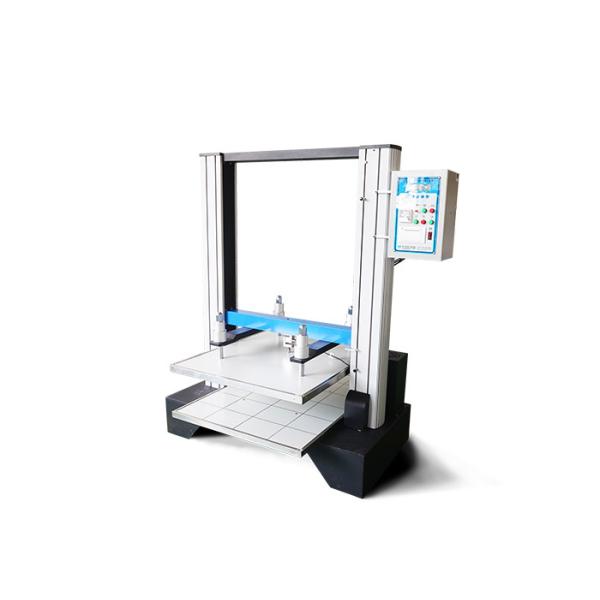

                        Microcomputer Box Compression Tester With Computer Servo Control Images |
